產品名稱：
英管外螺紋60°/英管外螺紋O型圈直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

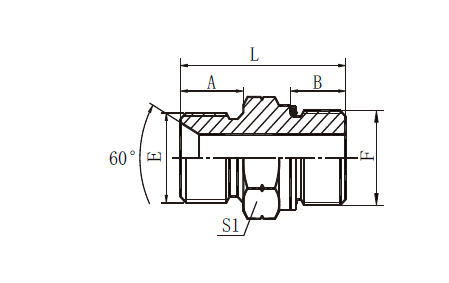

| 訂貨號 | 螺 紋 | 尺 寸 | |||||
| E | F | A | B | L | S1 | ||
| A35-04 | G1/4"X19 | G1/4"X19 | 12 | 11 | 31 | 19 | |
| A35-06 | G3/8"X19 | G3/8"X19 | 13.5 | 11.5 | 33 | 22 | |
| A35-08 | G1/2"X14 | G1/2"X14 | 16 | 14 | 41 | 27 | |
| A35-12 | G3/4"X14 | G3/4"X14 | 18.5 | 15.5 | 46 | 32 | |
| A35-16 | G1"X11 | G1"X11 | 20.5 | 18 | 53 | 41 | |
| A35-20 | G1.1/4"X11 | G1.1/4"X11 | 20.5 | 20 | 58.5 | 50 | |
| A35-24 | G1.1/2"X11 | G1.1/2"X11 | 23 | 21.5 | 62.5 | 55 | |
